Temperature Sensors

We offer two types of temperature sensors: optical temperature probes and electric PT100 temperature probes.

PT100 probes are connected to FireSting type optical devices via the LEMO connection port (also referred to as external temperature port) which is intended for temperature compensation of all oxygen or pH measurements.

For highly accurate and fast temperature compensation of pH and oxygen measurements, the optical temperature sensors can be used. These sensors can also be used independently for applications where fast response times are required.

Choose from a variety of fiber-optic and contactless sensor options. Make sure to select all necessary accessories for the contactless sensor options.

Optical Temperature Sensors

Fiber-Optic Temperature Sensors Options for Gases and Liquids

Robust temperature probes and mini sensors, response time (t90 < 1s), with optical isolation

Product Options

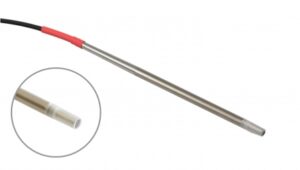

TPROBSC: robust probe, 4mm diameter, 10cm long, 2m cable, 2 screw cap sensors per package

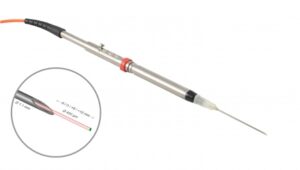

TPR430: retractable fiber mini sensor, 430µm tip diameter, 40mm needle length, 2m cable

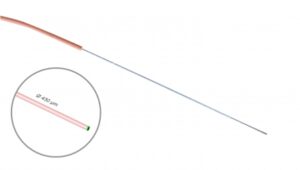

TPB430: bare fiber mini sensor, 430µm tip diameter, 2m cable

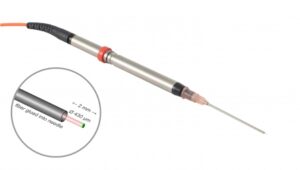

TPF1100: fixed mini sensor, 430µm tip diameter (protrudes 2mm), 1.2mm needle diameter, 2m cable

TPROBSC-SUB: same as TPROBSC, but with underwater connector -SUB instead of -ST connector

TPR430-SUB: same as TPR430, but with underwater connector -SUB instead of -ST connector

TPB430-SUB: same as TPB430, but with underwater connector -SUB instead of -ST connector

TPF1100-SUB: same as TPF1100, but with underwater connector -SUB instead of -ST connector

Downloads

TPROBSC

TPR430

TPB430

TPF1100

Contactless Temperature Sensor Options for Gases and Liquids

Sensor spots, flow-through cells, sensor vials for measurements in closed containers

Product Options

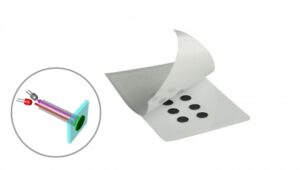

TPSP5: temperature spots, autoclavable, response time (t90 < 1s), requires SPGLUE silicon glue

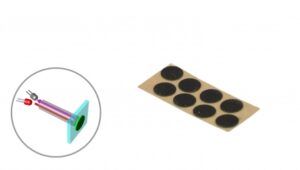

TPSP5-ADH: temperature spots, autoclavable, response time (t90 < 1s), self-adhesive

TPSP5-ADH-STER: same as TPSP5-ADH, sterilized

TPFLOW: temperature flow-through cell, sterilized using 25kGy beta-irradiation, requires SPFIB-BARE

TPFTC2: flow-through cell, recommended flow rate: 20-500 mL/min DISCONTINUED

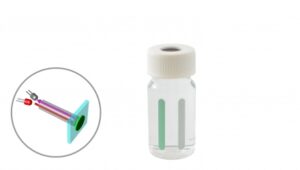

TOVIAL20: 20 mL vial with integrated oxygen & temperature sensor, autoclavable

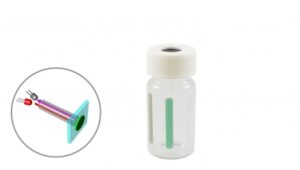

PHTOVIAL20-PK7: 20 mL vial with integrated pH (6-8 pH range) & oxygen & temperature sensors

PHTOVIAL20-PK8: 20 mL vial with integrated pH (7-9 pH range) & oxygen & temperature sensors

PHTVIAL20-PK7: 20 mL vial with integrated pH (6-8 pH range) & temperature sensors

PHTVIAL20-PK8: 20 mL vial with integrated pH (7-9 pH range) & temperature sensors

Downloads

TPSP5

TPSP5-ADH

TPFLOW

TOVIAL20

PHTOVIAL20-PK7

PHTVIAL20-PK7

PT100 Temperature Probes

External Temperature Probe Options

Electric with LEMO connector type

Product Options

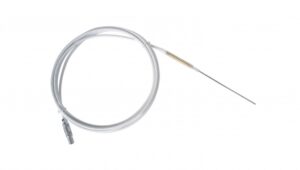

TDIP15 – stainless steel temperature dipping probe, robust tip and shielded cable, only tip submersible in water, fast response time, 2m long cable

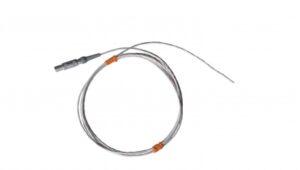

TSUB21 – flexible Teflon-coated temperature probe, tip and cable are completely submersible in water, 2m long cable

TSUB21-CL1 – flexible Teflon-coated temperature probe, tip and cable are completely submersible in water, 1m long cable

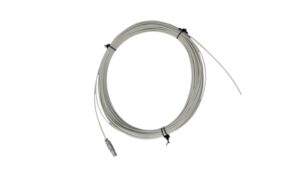

TSUB21-CL20 – flexible Teflon-coated temperature probe, tip and cable are completely submersible in water, 20m long cable

TSUB21-CL5 – flexible Teflon-coated temperature probe, tip and cable are completely submersible in water, 5m long cable
