Oxygen Sensors

PyroScience oxygen sensor systems are based on innovative, high-precision optical detection technique called REDFLASH technology. The sensor designs range from robust probes and microsensors to contactless sensors for closed containers as well as a one of a kind solvent-resistant probe for many polar and non-polar solvents. Pair these up with a compatible optical device and necessary accessories for complete sensor systems.

​We offer complete plug-and-play sensor systems and OEM type solutions for a variety of scientific and industrial applications.

Request a Quote

Fiber-Optic Oxygen Sensors

All probes work in gaseous and liquid samples and are compatible with all FireSting type optical meters*

Robust Oxygen Probes

3mm tip diameter, stainless steel, optically isolated

  • OXROB10: Standard range, 10cm long, 2m cable

  • OXROB10-HS: Standard range, high speed (t90 <0.5-3s), 10cm long, 2m cable

  • OXROB10-CL4: Standard range, 10cm long, 4m cable

  • TROXROB10: Trace range, 10cm long, 2m cable

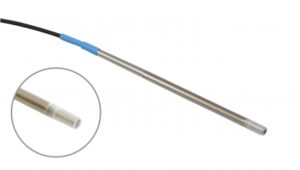

  • OXROBSC: Standard range, screw cap, 10m long, 2m cable

  • OXROB3: Standard range, 3cm long, 2m cable

  • OXROB3-CL4: Standard range, 3cm long, 4m cable

  • TROXROB3: Trace range, 3cm long, 2m cable

  • OXROBGSC-CL5: Standard range, screw cap, 10cm long, 5m cable

  • OXROBGSC-CL10: Standard range, screw cap, 10cm long, 10m cable

  • OXROBGSC-CL20: Standard range, screw cap, 10cm long, 20m cable

Standard Range Probe Specifications
Trace Range Probes Specifications

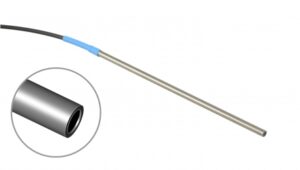

Robust oxygen probe OXROB10
Robust Oxygen Probe OXROBSC
Robust Oxygen Probe OXROB3

Robust Oxygen Probes (for PICO meters only*)

3mm tip diameter, stainless steel, optically isolated

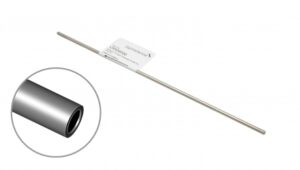

  • OPDIP20: Standard range, dipping probe, 20cm long

  • OPROB3: Standard range, 3cm long, 1m cable

Standard Range Probe Specifications
Robust dipping oxygen probe OPDIP20

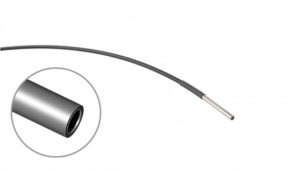

Robust oxygen probe OPROB3

Fixed Fiber Oxygen Minisensors

430µm tip diameter, sensor tip protrudes ca. 2mm, 40mm needle length

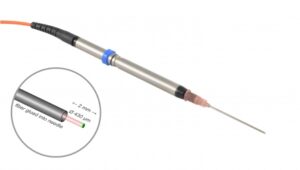

  • OXF1100: Standard range, response time (t90 < 3-5s), 2m cable

  • OXF1100-CL4: Standard range, response time (t90 < 3-5s), 4m cable

  • TROXF1100: Trace range, response time (t90 < 3-5s), 2m cable

  • TROXF1100-CL4: Trace range, response time (t90 < 3-5s), 4m cable

  • OXF1100-HS: Standard range, response time (t90 < 0.8s), 2m cable

  • OXF1100-UHS: Standard range, response time (t90 < 0.3s), 2m cable

  • OXF1100-OI: Optically isolated, standard range, response time (t90<6-10s), 2m cable

  • OXF1100-OI-CL4: Optically isolated, standard range, response time (t90<6-10s), 4m cable

Standard Range Minisensor Specifications
Trace Range Minisensor Specifications
Sensor Dimensions
Fixed Fiber Oxygen Minisensors OXF1100

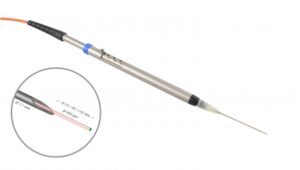

Retractable Fiber Oxygen Minisensors

430µm tip diameter, 4-step sliding mechanism, 40mm needle length

  • OXR430: Standard range, response time (t90 < 3-5s), 2m cable

  • OXR430-CL4: Standard range, response time (t90 < 3-5s), 4m cable

  • TROXR430: Trace range, response time (t90 < 3-5s), 2m cable

  • OXR430-HS: Standard range, response time (t90 < 0.8s), 2m cable

  • OXR430-HS-CL4: Standard range, response time (t90 < 0.8s), 4m cable

  • OXR430-UHS: Standard range, response time (t90 < 0.3s), 2m cable

  • OXR430-OI: Optically isolated, standard range, response time (t90 < 6-10s), 2m cable

  • OXR430-OI-CL4: Optically isolated, standard range, response time (t90 < 6-10s), 4m cable

Standard Range Minisensor Specifications
Trace Range Minisensor Specifications
Sensor Dimensions
Retractable Fiber Oxygen Minisensors OXR430

Protected Tip Fiber Oxygen Minisensors

40mm needle length, optimized for gas measurements, sensor tip glued into needle

  • OXF500PT: 500µm needle diameter, response time (t90 < 3-5s), 2m cable

  • OXF500PT-OI: Optically isolated, 500µm needle diameter, response time (t90 < 6-10s), 2m cable

  • OXF500PT-OI-CL4: Optically isolated, 500µm needle diameter, response time (t90 < 6-10s), 4m cable

  • OXF900PT: 900µm needle diameter, response time (t90 < 3-5s), 2m cable

  • OXF900PT-OI: Optically isolated, 900µm needle diameter, response time (t90 < 6-10s), 2m cable

Standard Range Minisensor Specifications
Sensor Dimensions

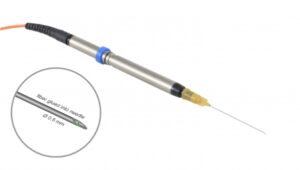

Protected Tip Fiber Oxygen Minisensors OXF500PT
Protected Tip Fiber Oxygen Minisensors OXF900PT

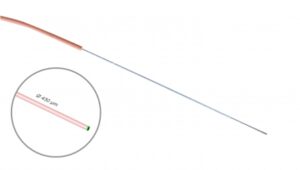

Bare Fiber Oxygen Minisensors

430µm tip diameter, for custom integrations into special geometries

  • OXB430: Standard range, response time (t90 < 3-5s), 2m cable

  • TROXB430: Trace range, response time (t90 < 3-5s), 2m cable

  • OXB430-HS: Standard range, response time (t90 < 0.8s), 2m cable

  • OXB430-UHS: Standard range, response time (t90 < 0.3s), 2m cable

  • OXB430-UHS-CL4: Standard range, response time (t90 < 0.3s), 4m cable

  • OXB430-OI: Optically isolated, standard range, response time (t90 < 6-10s), 2m cable

Standard Range Minisensor Specifications
Trace Range Minisensor Specifications
Sensor Dimensions
Bare Fiber Oxygen Minisensors OXB430

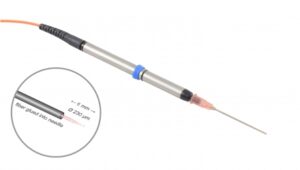

Fixed Fiber Oxygen Microsensors

50-70µm tip diameter, sensor tip protrudes ca. 6mm, 40mm needle length

  • OXF50: Standard range, response time (t90 < 3-5s), 2m cable

  • OXF50-HS: Standard range, response time (t90 < 0.8s), 2m cable

  • OXF50-UHS: Standard range, response time (t90 < 0.3s), 2m cable

  • OXF50-OI: Optically isolated, response time (t90 < 6-10s), 2m cable

Fixed Fiber Optical Oxygen Microsensor Specifications
Sensor Dimensions
Fixed Fiber Oxygen Microsensors OXF50

Retractable Fiber Optical Microsensors

50-70µm tip diameter, 4-step sliding mechanism, 40mm needle length

  • OXR50: Response time (t90 < 3-5s), 2m cable

  • OXR50-CL4: Response time (t90 < 3-5s), 4m cable

  • OXR50-HS: Response time (t90 < 0.8s), 2m cable

  • OXR50-UHS: Response time (t90 < 0.3s), 2m cable

  • OXR50-UHS-CL4: Response time (t90 < 0.3s), 4m cable

  • OXR50-OI: Optically isolated, response time (t90 < 6-10s), 2m cable

  • OXR50-OI-CL4: Optically isolated, response time (t90 < 6-10s), 4m cable

Standard Range Microsensor Specifications
Sensors Dimensions

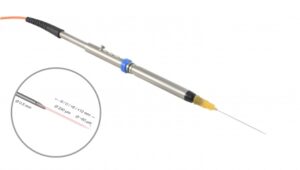

Retractable Fiber Optical Microsensors OXR50

Bare Fiber Oxygen Microsensors

50-70µm tip diameter, for custom integrations into special geometries

  • OXB50: Response time (t90 < 3-5s), 2m cable

  • OXB50-CL4: Response time (t90 < 3-5s), 4m cable

  • OXB50-HS: Response time (t90 < 0.8s), 2m cable

  • OXB50-UHS: Response time (t90 < 0.3s), 2m cable

  • OXB50-OI: Optically isolated, response time (t90 < 6-10s), 2m cable

  • OXB50-OI-CL4: Optically isolated, response time (t90 < 6-10s), 4m cable

Standard Range Microsensor Specifications
Sensors Dimensions

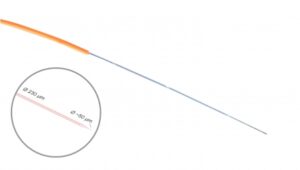

Bare Fiber Oxygen Microsensors OXB50

Solvent Resistant Oxygen Sensors

1.5mm needle diameter, for oxygen monitoring in organic solvents

  • OXSOLV: Fixed sensor tip protrudes ca. 2 mm, needle length 150 mm, 1m cable

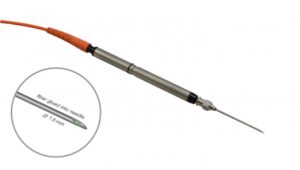

  • OXSOLV-PTS: Protected sensor tip, fiber glued into the needle, needle length 40 mm, 1m cable

Solvent Resistant Sensor Specifications
Sensors Dimensions
Tested Solvents List

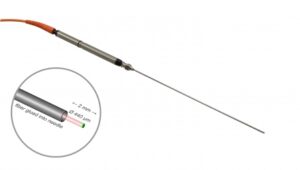

Solvent Resistant Optical Oxygen Sensor OXSOLV
Solvent Resistant Optical Oxygen Sensor OXSOLV-PTS

Contactless Oxygen Sensors

These sensors work in gaseous and liquid samples and are compatible with all FireSting and PICO type meters

Oxygen Sensor Spots

For measurements in closed containers. Transparent surface and accessories are required for complete setups.

  • OXSP5: Regular range, autoclavable, response time (t90 < 7-16s), requires SPGLUE silicon glue

  • TROXSP5: Trace range, autoclavable, response time (t90 < 7-16s), requires SPGLUE silicon glue

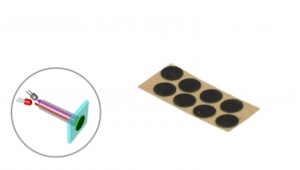

  • OXSP5-ADH: Regular range, autoclavable, response time (t90 < 7-16s), self-adhesive

  • TROXSP5-ADH: Trace range, autoclavable, response time (t90 < 7-16s), self-adhesive

  • OXSP5-SUB: Regular range, for underwater systems only, autoclavable, response time (t90 < 5s), requires SPGLUE silicon glue

  • OXSP5-ADH-STER: Regular range, beta-sterilized, response time (t90 < 7-16s), self-adhesive

  • TROXSP5-ADH-STER: Trace range, self-adhesive, beta-sterilized, response time (t90 < 7-16s)

Standard Range Sensor Specifications
Trace Range Sensor Specifications

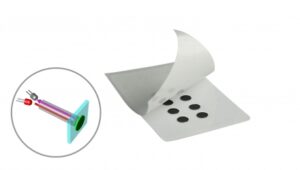

Oxygen Sensor Spots OXSP5

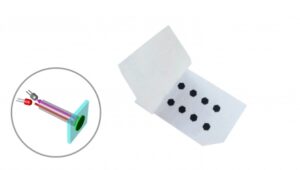

Trace Oxygen Sensor Spots TROXSP5
Trace Oxygen Sensor Spots OXSP5-ADH

Oxygen Flow-Through Cells

For inline oxygen and temperature monitoring with specified flow rates, varied response times

  • TOFTC2: Integrated O2 and temp sensor, for ca. 3.2 or 4.0mm ID tubings, flow rate: 20-500mL/min

  • OXFTC: Integrated O2 sensor, for ca. 1.6 or 2.4mm ID tubings, flow rate: 10-100mL/min

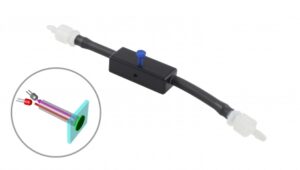

  • OXFTC2: Integrated O2 sensor, for ca. 3.2 or 4.0mm ID tubings, flow rate: 20-500mL/min

   These cells are now sterilized:

  • OXFLOW: cell with integrated O2 sensor, sterilized using 25kGy beta-irradiation

  • OXFLOW-HS: cell with integrated O2 sensor, sterilized using 25kGy beta-irradiation, high speed

  • TROXFLOW: cell with integrated O2 sensor, sterilized using 25kGy beta-irradiation, trace range

Oxygen Flow-Through Cell Specifications (OLD)
Oxygen Flow-Through Cell Specifications (NEW)
Trace Range Sensor Specifications

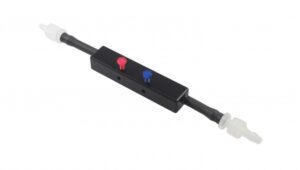

Oxygen Flow-Through Cells TOFTC2

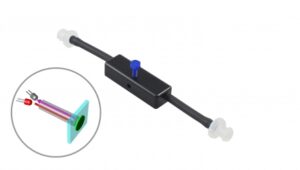

Oxygen Flow-Through Cells OXFTC
Oxygen Flow-Through Cells OXFTC2

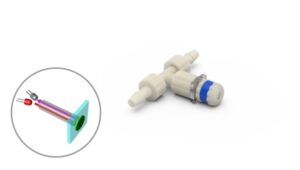

Oxygen Flow-Through Cells OXFLOW

Oxygen, Temperature and pH Sensor Vials

For measurements in closed containers. Fiber cables and adapters are required for complete setups.

  • OXVIAL4: 4ml vial with integrated oxygen sensor strip

  • OXVIAL20: 20ml vial with integrated oxygen sensor strip

  • TOVIAL20: 20 ml vial with integrated oxygen and temperature sensor strips

  • PHTOVIAL20-PK7: 20 ml vial with integrated oxygen, pH range 6.0-8.0 and temperature sensor strips

  • PHTOVIAL20-PK8: 20 ml vial with integrated oxygen, pH range 7.0-9.0 and temperature sensor strips

Sensor Vial Specifications

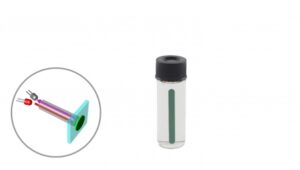

Oxygen Sensor Vials OXVIAL4

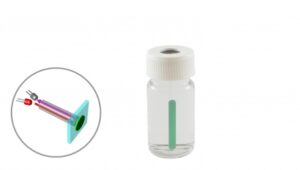

Oxygen Sensor Vials OXVIAL20

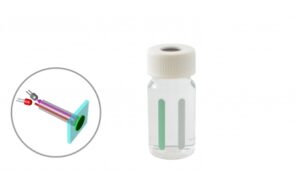

Oxygen and Temperature Sensor Vials TOVIAL20

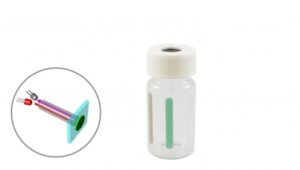

Oxygen, pH and temperature sensor vials PHTOVIAL20-PK7

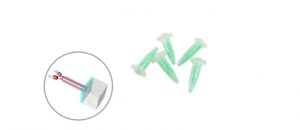

Oxygen Nanoprobes – OXNANO

Ideal for microfluidics, complex geometries and lab-on-a-chip applications. Autoclavable, real-time response.

  • Dispersible oxygen nanoprobes

  • Requires transparent windows for read-out

  • Autoclavable

  • Real-time response

  • Diameter of a single nanoprobe bead is 200 – 300nm

  • Requires an optical cable or rod for complete setup

Oxygen Nanoprobes Specifications
Oxygen Nanoprobes OXNANO

Oxygen Sensor Starter Kits

An economical way to test out a few different sensors when you are unsure which one to pick.

Optical Oxygen Starter Kits

Limit one (1) kit per meter purchase.

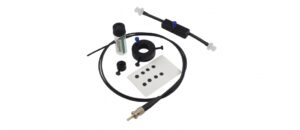

  • OXKIT-CTL: Includes 1/2 OXFTC, OXSP5, SPFIB-BARE, 1/4 SPADBAS, 1/4 OXVIAL4, ADVIAL4

  • OXKIT-CTL-PIC: Includes 1/2 OXFTC, OXSP5, PICFIB2, ¼ SPADBAS, 1/4 OXVIAL4, ADVIAL4

  • OXKIT-FOP: Includes OXR50, OXF1100, OXROB10

  • OXKIT-FOP-OI: Includes OXR50-OI, OXF1100-OI, OXROB10

Oxygen Sensors Manual
Oxygen Sensor Kit OXKIT-CTL

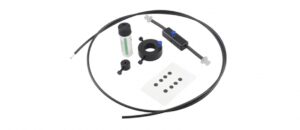

Oxygen Sensor Kit OXKIT-CTL-PIC

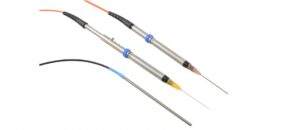

Oxygen Sensor Kit OXKIT-FOP

Oxygen Calibration Capsules

10 capsules per pack, each capsule results in 50mL buffer solution

  • OXCAL: Calibrations capsules for 50ml 0% O2 solution, for 0% calibration of optical O2 sensors

Oxygen Calibration Capsules Safety Data Sheet (SDS)
Oxygen Calibration Capsules OXCAL

Oxygen Sensor Microplates

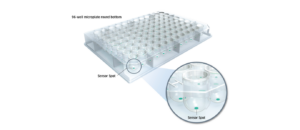

96-well Oxygen Sensor Microplates

Each microplate is sterilized with ethylene oxide and includes an integrated O2 sensor minispot (1-1.5mm diameter) at the bottom of each well. The microplates are placed directly on the FirePlate-O2 device allowing for non-invasive, contactless oxygen readout in 96 channels simultaneously. Typical applications include environmental and enzyme activity analysis, small-scale cell cultivation, process engineering, respiration rates studies, etc. These plates come with dark lids which protect the sensor spots from excessive ambient light during calibration and measurement.

  • OXMWP-96F – flat bottom
  • OXMWP-96R – round bottom



Related product: FirePlate-o2

Oxygen Sensor Minispots Specifications
