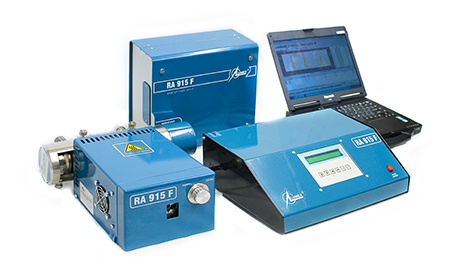

The RA-915F Mercury Analysis System combines facets of the PYRO-915 attachment with Zeeman atomic absorption spectrometry for a complete system designed for direct mercury measurement in solids and liquids such as food, coal, FGD slurry, fly ash, raw feed materials, and other complex matrices.

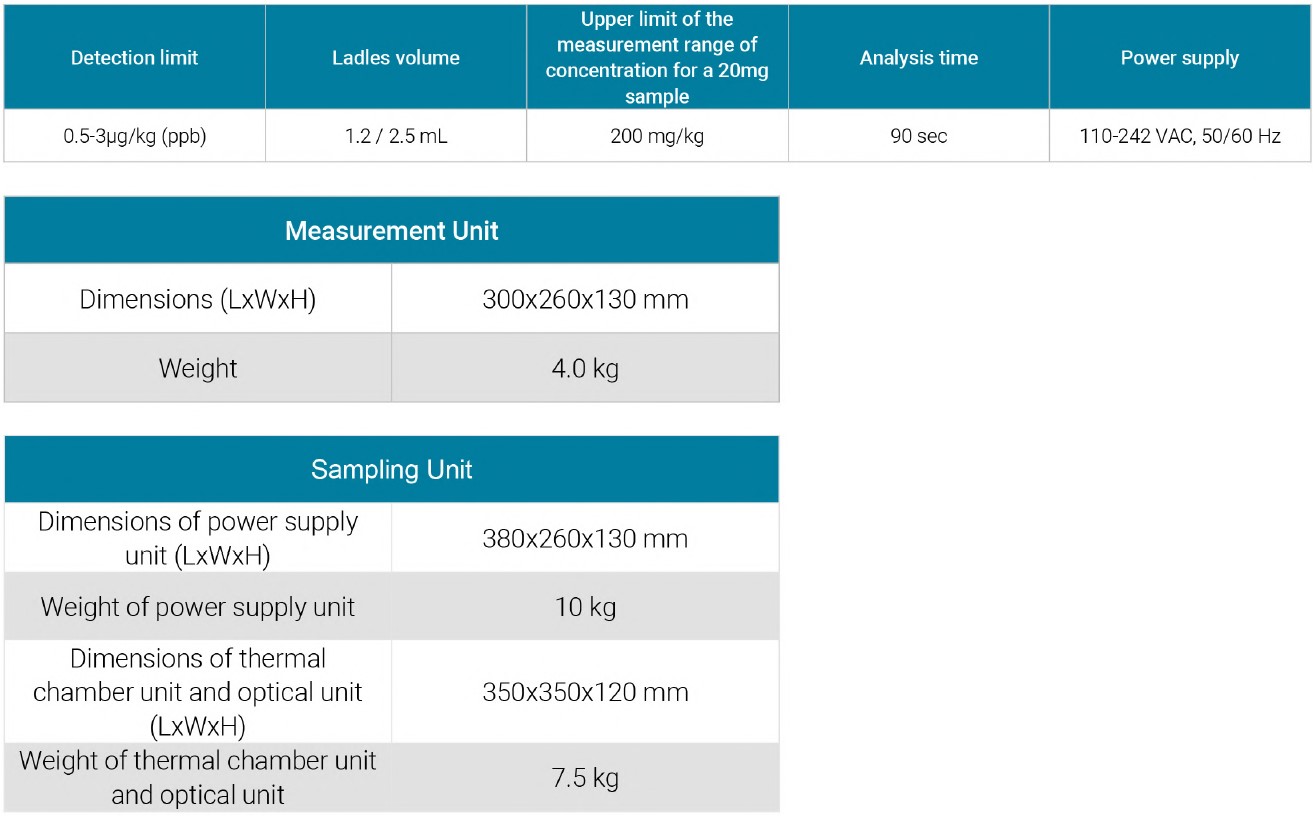

| Specifications | Details |
|---|---|
| Power supply | 110-242 VAC, 50/60 Hz |
| Measurement unit dimensions (L x W x H) and weight | 300 x 260 x 130 mm; 4.0 kg |
| Sampling unit power supply dimensions (L x W x H) and weight | 380 x 260 x 130 mm; 10kg |
| Thermal chamber unit and optical unit dimensions (L x W x H) and weight | 350 x 350 x 120 mm; 7.5 kg |
| Detection limit | 0.5-3μg/kg (ppb) |
| Ladle volume | 1.2/2.5 mL |
| Upper limit of the measurement range for a sample with 20mg concentration | 200 mg/kg |
| Analysis time | 90 seconds |
