Ei410 Sorbent Trap Sampler

Air Monitoring with Sorbent Traps

Available for Download

Air quality plays a vital role in protecting public health and the environment, and accurate monitoring is essential for informed decision-making. Sorbent trap technology offers a reliable and cost-effective solution for detecting and measuring hazardous air pollutants (HAPs). These compact, easy-to-use devices collect air samples over a defined period and are then sent to a laboratory for analysis. Whether used for community monitoring, workplace safety assessments, environmental research, or regulatory compliance, sorbent traps provide a powerful tool for measuring airborne pollutants in a wide range of applications.

Advantages:

  • Capable of measuring analytes not possible with any other methodology
  • Simple, reliable, and cost effective
  • Extremely sensitive
  • No hazardous chemicals
  • Easy sample shipping

Product Details

Ei410 Sorbent Trap Sampler Features

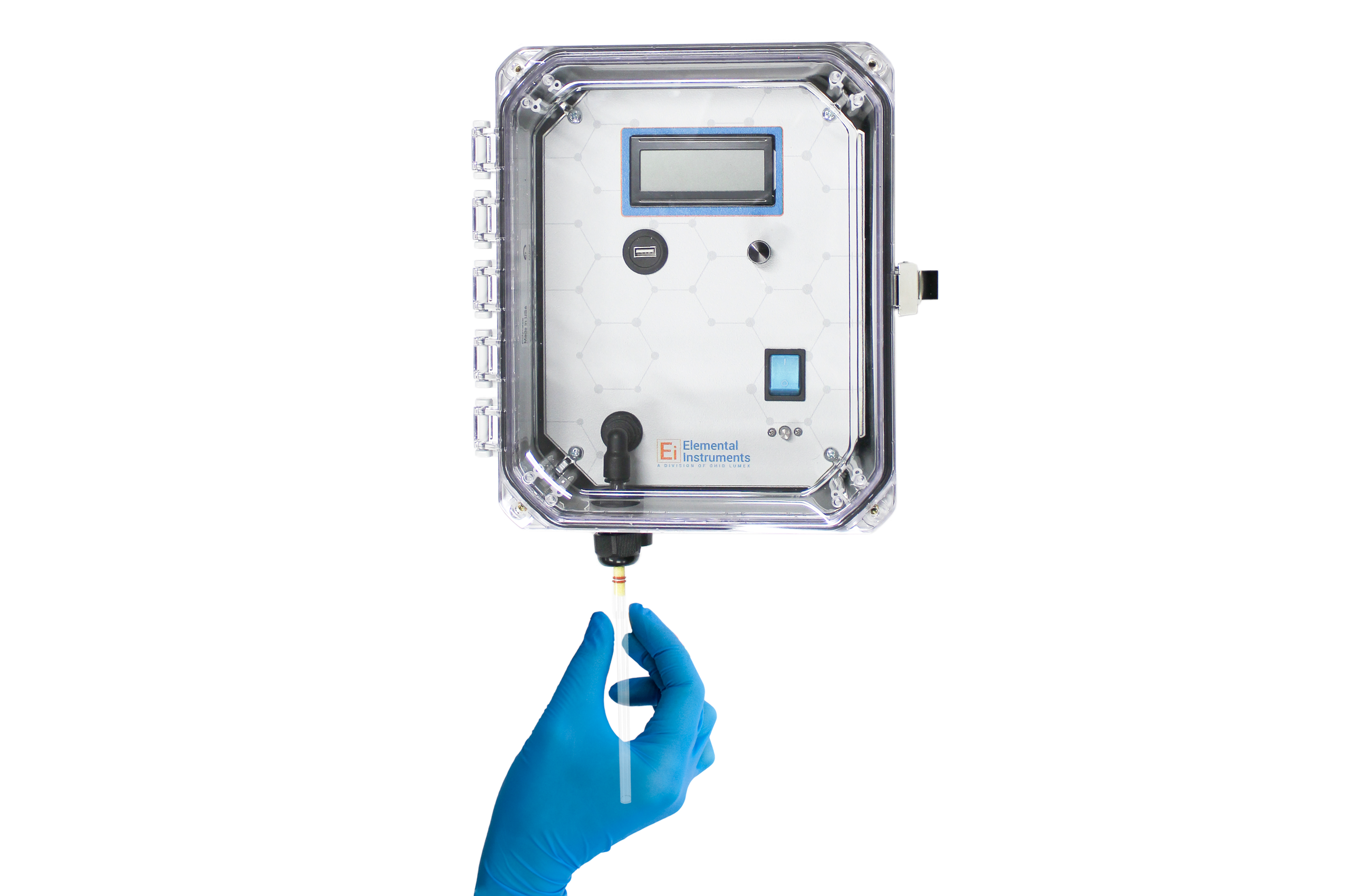

A sorbent trap is inserted into the sampler, the sampling volume or duration is set, and the sampling is started. The sampler will automatically stop when it reaches its target duration or volume and the user can then remove the sorbent trap for shipment to a laboratory.

This instrument includes:

  • Vacuum pump
  • Flow controller
  • Mass flow meter
  • Volume totalizer
  • Easy to use user interface
  • USB port for easy data transfer

Configurations

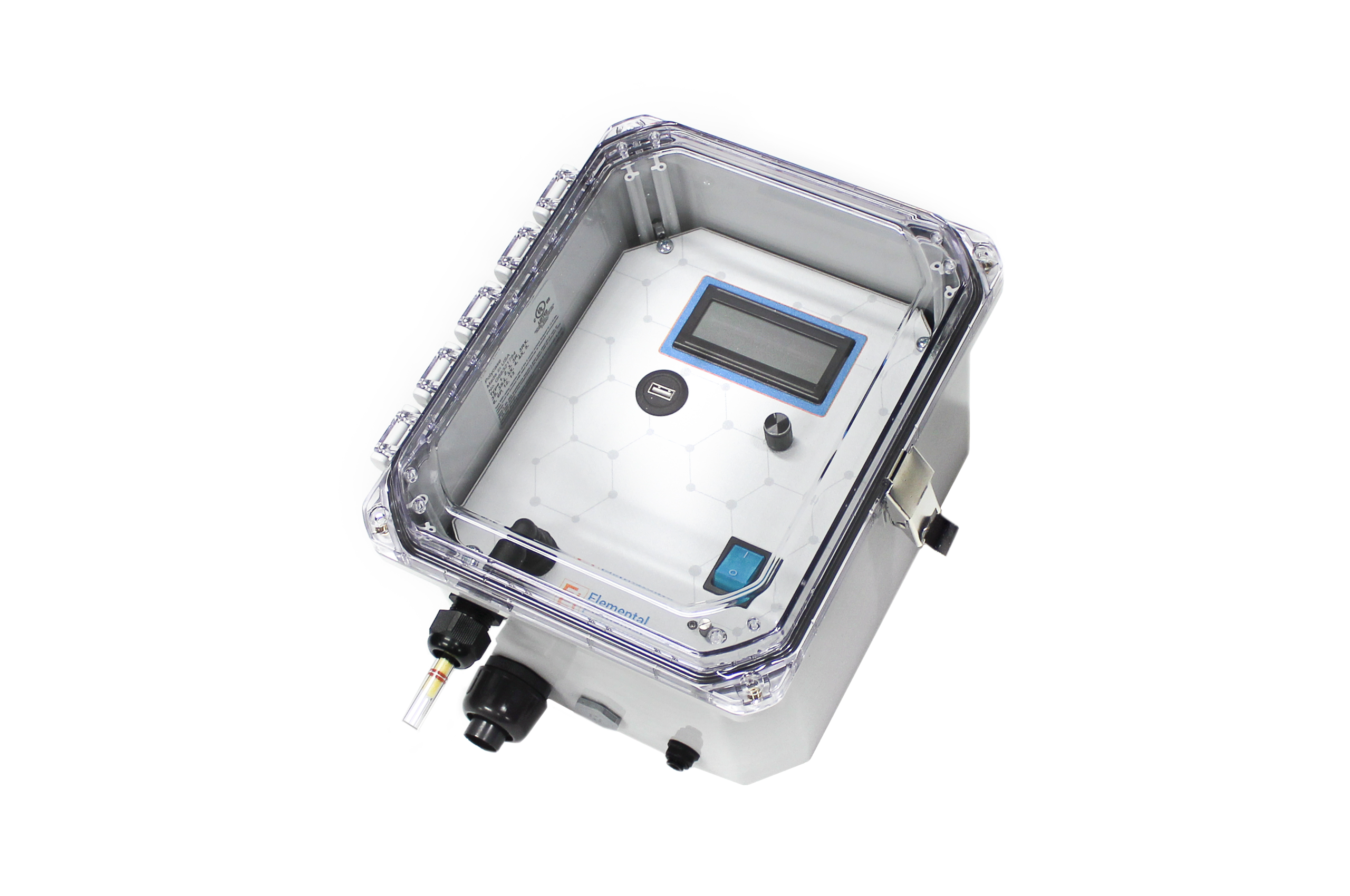

Wall Mount

Ei410 Sorbent Trap Sampler Technical Specifications

Specifications
Weight: 5.4 lbs
Dimensions: 10" wide x 12" tall x 5.5" deep
Power: 110/240V, 50/60 Hz
Flow rate: 0 - 0.6Lpm

Typical Applications for Ei410 Sorbent Trap Sampler

  • Air quality
  • Fenceline
  • Environmental
  • Research
  • Industrial hygiene

Available Measurements for Ei410 Sorbent Trap Sampler

  • Ammonia
  • Benzene
  • Dioxins and furans
  • Ethylene oxide
  • Formaldehyde
  • Hydrogen bromide
  • Hydrogen chloride
  • Hydrogen cyanide
  • Hydrogen sulfide
  • Mercury
  • Metal HAPS
    • Examples: As, Be, Cd, Co, Cr, Mn, Ni, Pb, Sb, Se
  • PCBs & pesticides
  • VOCs
  • Others…
