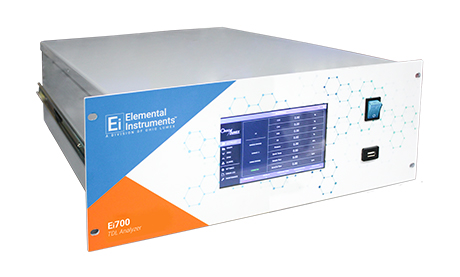

Biogas NH3 Analyzer (Ei700)

High performance biogas ammonia analyzer with the latest TDL technology

Available for Download

Using the proven laser absorption spectroscopy technique to detect and measure the concentration of NH3 in gas streams, the Ei700 Biogas NH3 Analyzer measures ammonia by emitting a specific wavelength of infrared (IR) light through a multi-pass sample cell and into a detector. Ammonia molecules present in the gas sample absorb and reduce the intensity of the laser light energy in direct proportion to their concentration. The solid-state detector measures the difference in light intensity. This signal is processed using an algorithm to calculate the ammonia concentration.

Product Details

Biogas NH3 Analyzer (Ei700) Features

  • Tunable Diode Laser (TDL) technology is highly selective and not affected by the interference of other gases and has the advantages of rapid response speed and high sensitivity
  • Multi-pass sample cell allows for low detection (0-20ppm)
  • 7” (or 10” optional) color touchscreen display
  • High sensitivity
  • Low number of wear items for improved reliability
  • Automatic calibration
  • Modbus TCP/IP communication and analog outputs
  • Remote access capabilities
  • Front panel USB for firmware upgrades, data download, or peripheral devices

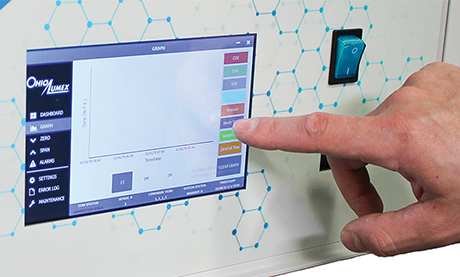

  • Innovative InteliSense™ software platform across all Ei analyzers for consistent, simple, and user-friendly interface, operability, and data display
Display
  • 10” Display
Enclosure
  • 19” Rack-Mount Enclosure

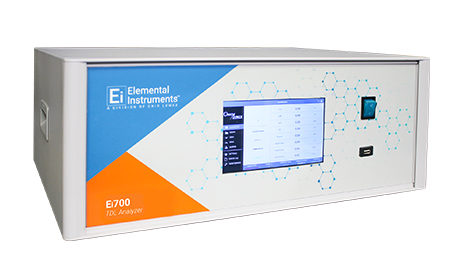

  • Tabletop Enclosure
  • Wall-Mount Enclosure
  • Portable Enclosure

Configurations

19″ Rack, Wall Mount, Tabletop, Portable

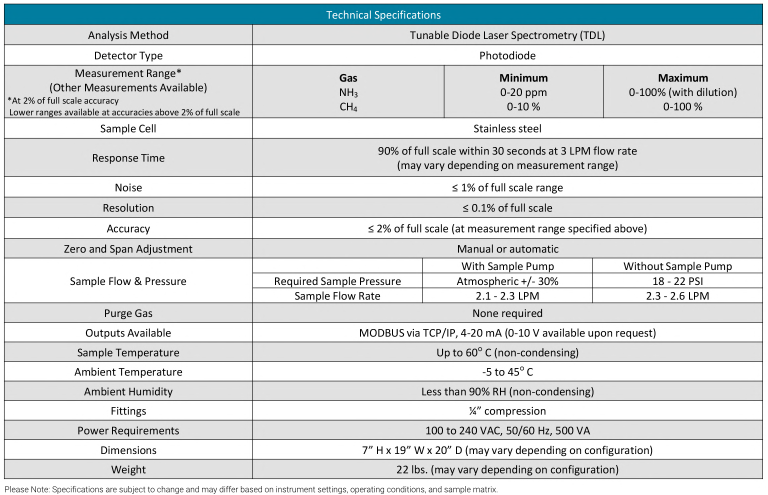

Biogas NH3 Analyzer (Ei700) Technical Specifications

Ei700 Biogas NH3 Analyzer Technical Specs

Typical Applications for Biogas NH3 Analyzer (Ei700)

  • Wastewater Treatment Plants
  • RNG Interconnection Rules Compliance
  • Landfills
  • Dairy Farms
  • Hog and Pig Farms
  • Food Waste Digesters (co-digestion)
  • Others

Available Measurements for Biogas NH3 Analyzer (Ei700)

  • Ammonia (NH3)
